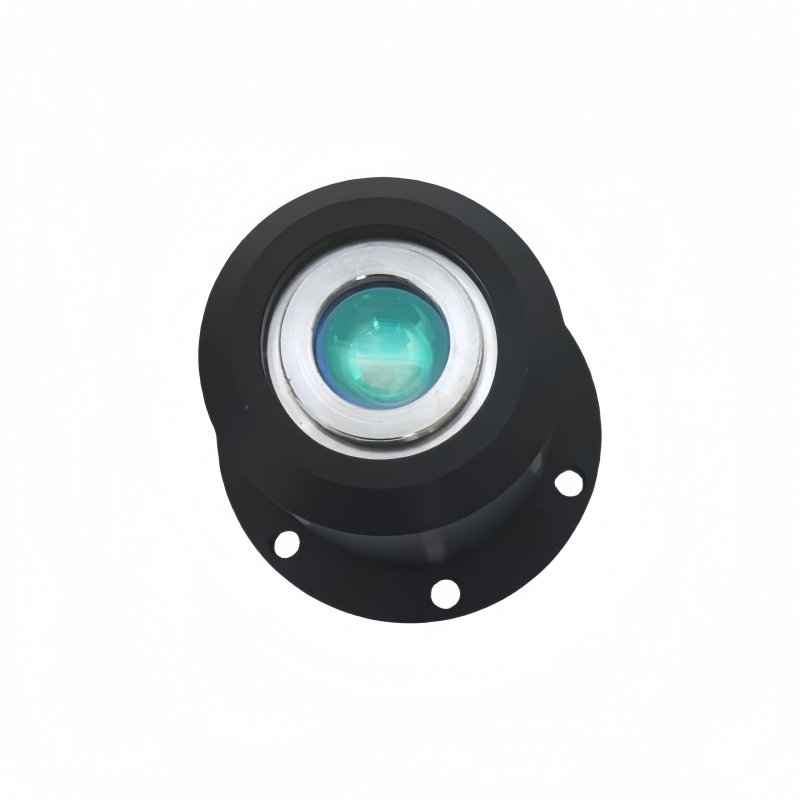

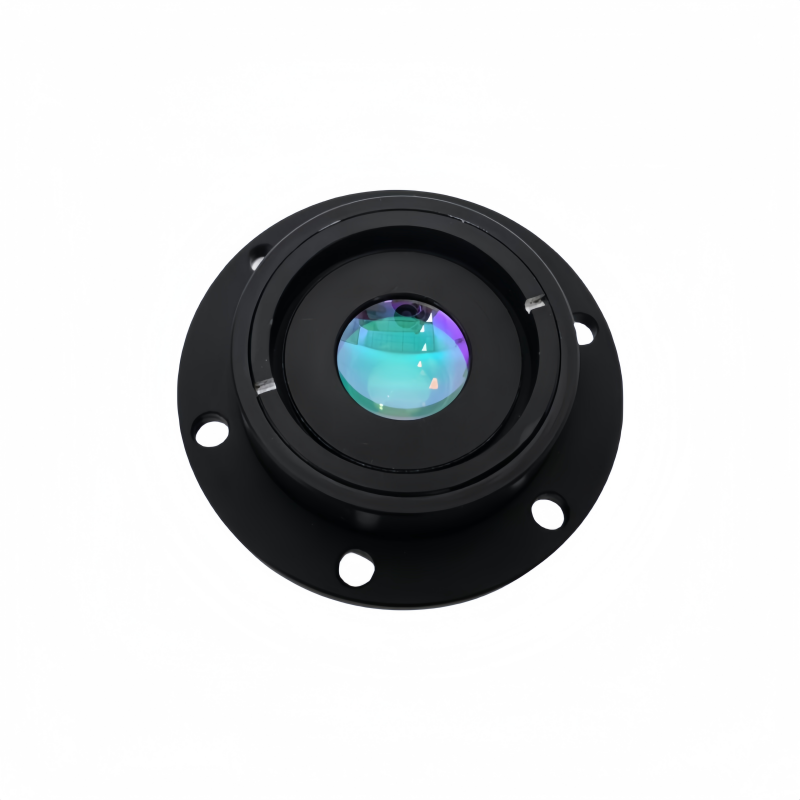

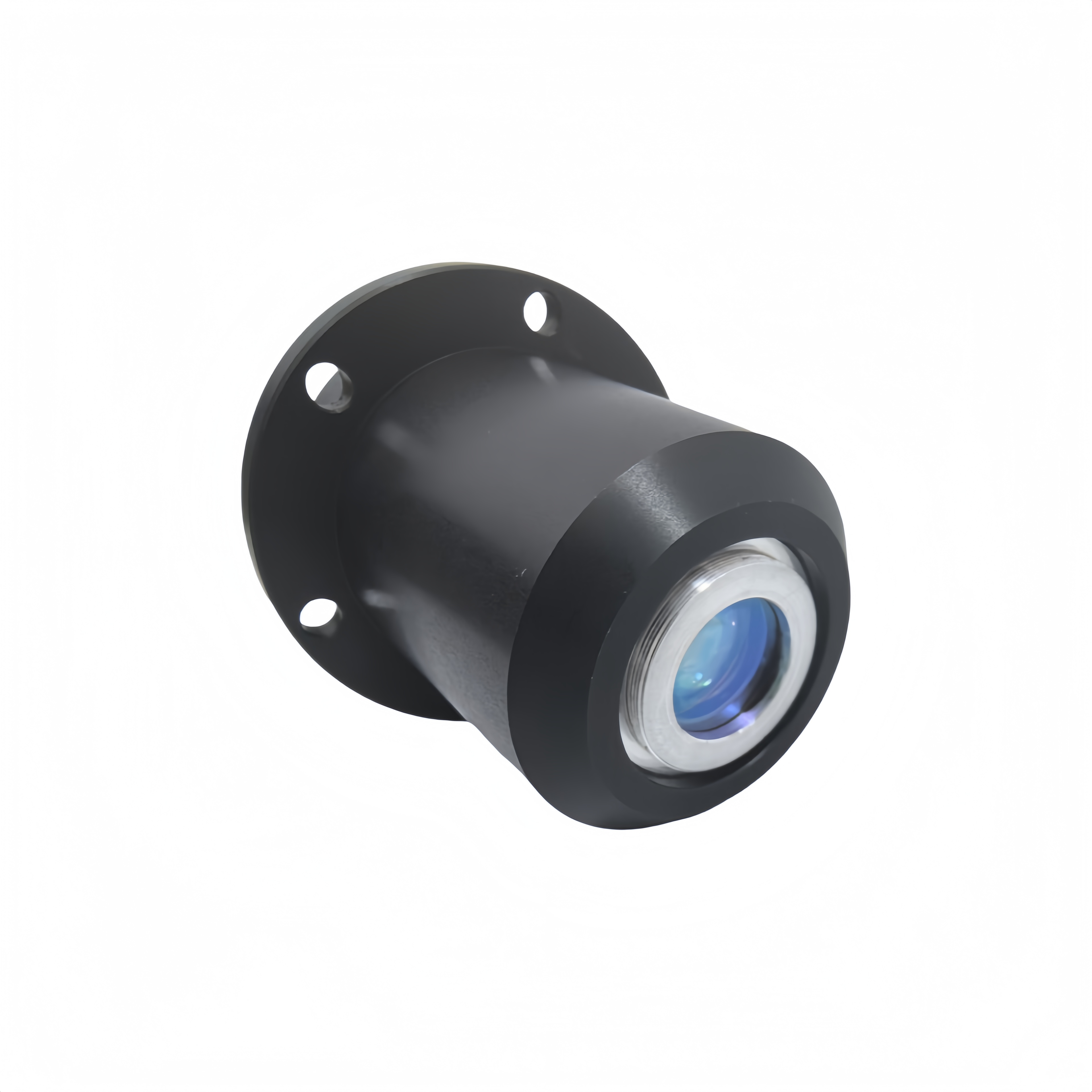

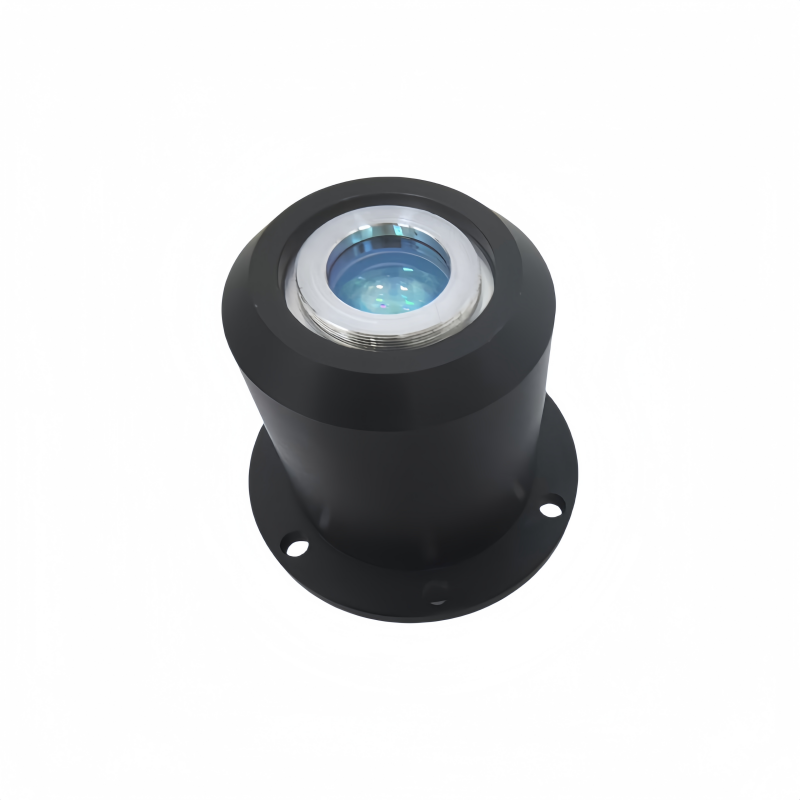

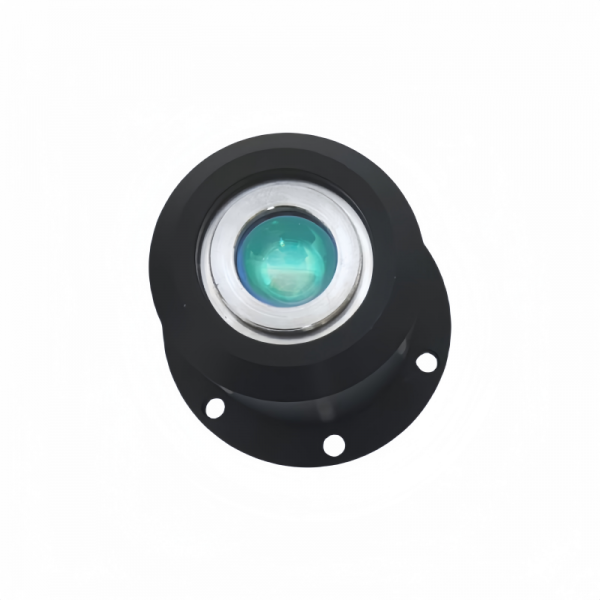

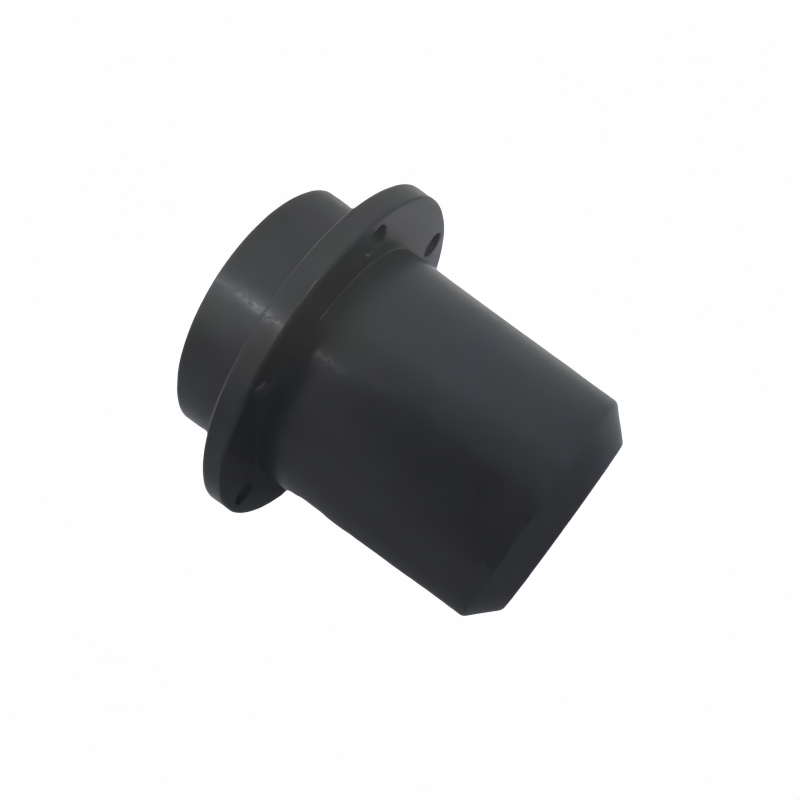

Short – Wave Infrared Fixed – Focus Lens Series

Model Name
Lens Type	1 – inch 12MP SWIR Fixed – Focus Lens	1/1.8″ SWIR Fixed – Focus Lens	1 – inch 1MP SWIR Fixed – Focus Lens	1/1.8″ SWIR Fixed – Focus Lens
Focal Length	8mm	8mm	16mm	8mm
Compatible Sensor	1 – inch (12.8mm diagonal)	1/1.8″ (8.9mm diagonal)	1 – inch (12.8mm diagonal)	1/1.8″ (8.9mm diagonal)
Mount	C – Mount	C – Mount	C – Mount	C – Mount
Aperture Range	Manual, F1.8 – F16	Manual, F1.8 – F16	Manual, F1.4 – F16	Manual, F1.8 – F16
Spectral Range	450 – 2000nm (Visible + NIR + SWIR, multi – band correction)	900 – 1700nm (Typical NIR – SWIR)	800 – 1900nm (Mainly SWIR)	900 – 1700nm (Optimized NIR – SWIR)
Field of View (1 – inch Sensor)	Horizontal ~ 64.4°, Vertical ~ 48.3°, Diagonal ~ 81.3°	— (For 1/1.8″ sensor, diagonal ~ 46.8°)	Horizontal ~ 35.2°, Vertical ~ 26.4°, Diagonal ~ 43°	— (For 1/1.8″ sensor, diagonal ~ 46.8°)
Minimum Object Distance	0.2m (Clear imaging at ∞)	0.15m	0.3m	0.15m
Optical Distortion	< 1.0% (1 – inch sensor, better at center area)	Low – distortion design for high – precision inspection	< 1.0% (1 – inch sensor)	Low distortion for industrial inspection
Dimension (mm)	Φ58×79.5 (Lens length at ∞ focus)	Φ34×40.5	Φ43×52.9	Φ30×36.5
Weight	210g	Approx. 70g	150g	Approx. 60g
Operating Temperature	– 10°C – +50°C	– 20°C – +70°C	– 10°C – +50°C	– 20°C – +70°C
Typical Applications	Industrial multi – band inspection (e.g., PCBs, 3C products), scientific research imaging	Industrial defect inspection (lithium – ion batteries, FPD), NIR security	SWIR imaging (power line inspection, night vision enhancement)	Precision industrial inspection (semiconductors, wafers), NIR identification

分类： Aviation Airborne Systems, Handheld Electro-Optical Device (HED), IMAGING LENSES, INFRARED IMAGING SYSTEM, LASER OPTICS, Low-Altitude Economy, Robotic Vision

描述

Product Introduction

Our Short – Wave Infrared Fixed – Focus Lens Series is engineered to deliver exceptional performance in industrial inspection, scientific research, and security applications. Leveraging advanced optical design, these lenses offer high – resolution imaging across the near – infrared to short – wave infrared spectrum. Whether you’re detecting defects in PCBs, conducting night vision – enhanced surveillance, or performing precise industrial measurements, our lenses provide low distortion, stable performance, and reliable operation in a variety of environmental conditions. They are compatible with mainstream sensor sizes, ensuring seamless integration into your imaging systems.
